Symbolic execution is a powerful technique used in software analysis to systematically examine the behavior of programs. Unlike traditional testing methods that rely on concrete inputs, symbolic execution operates directly on the program’s source code. It uses symbolic representations of inputs, allowing it to explore program paths and reason about their feasibility. This approach is particularly useful for analyzing properties related to reachability and path feasibility, both of which are critical in understanding and verifying the correctness of software.
One of the fundamental goals of symbolic execution is to analyze the real source code of a program, meaning that it works directly on the code written by developers rather than relying on abstractions or simplified models.
A core aspect of symbolic execution is its focus on reachability and path feasibility:
Definition
Reachability refers to whether a specific program location, often labeled as , can be reached during execution. Symbolic execution aims to verify that cannot be reached, or alternatively, to identify the specific conditions under which becomes reachable.
Path feasibility involves determining whether a particular sequence of instructions, or path , in the program can be executed given the constraints of the program. The technique seeks to establish that is infeasible or, if it is feasible, to describe the precise conditions enabling its execution.
Additionally, symbolic execution can be employed to generate test cases automatically. By systematically exploring paths in the program, it can derive input values that lead to specific outcomes, facilitating thorough testing. However, despite its automation and analytical power, symbolic execution may fail to analyze all possible paths in a program. This limitation often arises due to issues such as path explosion (the rapid increase in the number of paths to explore) or constraints that are too complex to solve.
Reachability and Path Feasibility
The question of reachability asks whether a certain program location can be accessed during execution.
Example
For example, consider a block of code enclosed within a try-catch statement:
In this context, symbolic execution attempts to answer two primary questions:
Can location , where an error is handled, ever be reached during program execution?
If so, under what conditions will this happen?
For instance, might represent a critical failure point, and verifying its reachability ensures that the software behaves as expected under both normal and exceptional circumstances.
Path feasibility analysis focuses on whether a given execution path , represented as , can occur under valid input conditions. Symbolic execution explores each path by applying constraints derived from the program logic.
Example
For example, consider the following snippet of code:
l-1: if (x < 0) {
l: /* safe */
}
Here, symbolic execution analyzes the feasibility of the path leading to under the condition . It systematically evaluates the constraints introduced by the if statement and determines whether the path is viable.
In both cases—reachability and path feasibility—symbolic execution not only aims to determine the outcome but also to provide precise conditions that explain the behavior. This capability is invaluable in identifying edge cases, potential bugs, and security vulnerabilities.
Symbolic State and Path Condition
Symbolic execution is a method that interprets a program’s behavior using symbolic values instead of concrete inputs. The concept of symbolic state is central to this approach, as it represents the abstract value of variables during the execution. Alongside the symbolic state, the path condition captures the constraints that determine the feasibility of a particular execution path.
Key Steps in Symbolic Execution
Initialization of Inputs
At the start of execution, all inputs are assigned symbolic values (e.g., ), which are placeholders for concrete data. These values allow the analysis to explore multiple program paths simultaneously.
Symbolic State Updates
As the program executes, each statement modifies the symbolic state. For example, an assignment like z := x updates the symbolic representation of to reflect its dependency on .
Branching and Path Splitting
When a branch (e.g., if condition) is encountered, symbolic execution splits into separate paths corresponding to the possible outcomes of the condition. Each path is associated with a path condition, which is a set of constraints accumulated along the path.
Continuing Along Feasible Paths
Symbolic execution progresses only along feasible paths, where is satisfiable. This means there exists at least one concrete assignment to the symbolic variables that satisfies all the constraints in .
Example
Consider the example function below:
0: void foo(int x, int y) {1: int z := x;2: if (z < y)3: z := z * 2;4: if (x < y && z >= y)5: print(z); // location6: }
Path Analysis:
Condition at Point 2: z < y
If true: ,
If false: ,
Condition at Point 4: x < y && z >= y
If true (from path where ):
If false:
Possible Outcomes of Symbolic Execution
SAT (Satisfiable) Exit
If is satisfiable, it implies that for some concrete input values, the execution can reach the desired location or satisfy a property. For instance, at location 5:
Example satisfying assignment:
UNSAT (Unsatisfiable) Exit
If is not satisfiable, the constraints prevent any concrete input from reaching the location or satisfying the property. For example, consider the path <0,1,2,4,5>:
No satisfying assignment exists, so this path is infeasible.
Execution Tree
Symbolic execution organizes all potential paths of a program into an execution tree, where:
Each branch corresponds to a decision point (e.g., an if statement).
Each leaf node represents a final state, labeled as SAT or UNSAT based on whether is satisfiable.

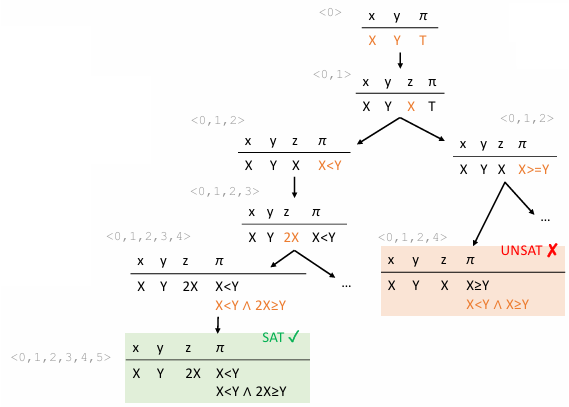

For the function foo, the execution tree might look like this:
Root: initial symbolic state.
Split at if (z < y): branches for and .
Further split at if (x < y && z >= y), creating paths with constraints on and .
This tree structure provides a comprehensive view of all possible program behaviors, helping identify reachable locations, infeasible paths, and conditions under which errors might occur.
Feasibility of Paths in the swap Program
The program swap attempts to manipulate the values of two input variables and . The symbolic execution explores all possible paths through the program to determine which ones are feasible based on the constraints in the path conditions.
0: void swap(int x, int y) {1: int z := x + y;2: int w := z - y;3: z := z - w;4: if (z != y || w != x)5: print("error");6: }

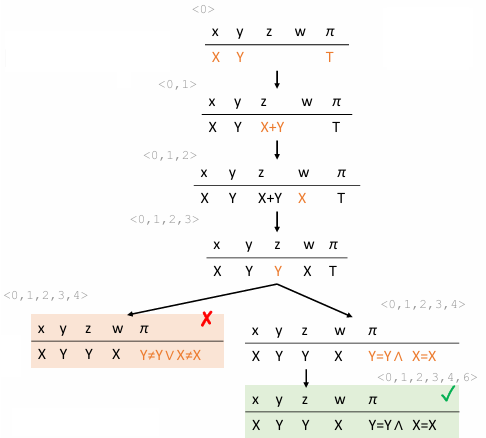

Symbolic Execution Steps:
At line 1:
At line 2:
At line 3:
Condition at Line 4:
The condition simplifies to , which is always false. Thus, the program never reaches line 5, making the path <0,1,2,3,4,5,6>unfeasible.
Feasible Path:
The path <0,1,2,3,4,6> is feasible because the condition at line 4 is false, allowing execution to proceed directly to line 6.
At the end of the feasible path, the symbolic state satisfies , confirming that the swap logic is correct. The program avoids the print("error") statement.
Feasibility of Path in the bar Program
The program bar processes two input values and , iterating and modifying through a loop with branching conditions.
0: int bar( ) {1: int y, x := input();2: while (x > 0) {3: y := 2 * x;4: if (x > 10)5: y := x - 1;6: else7: x := x + 2;8: x := x - 1;9: }10: x := x - 1;11: return x;12: }
Path to Analyze: <0,1,2,3,4,5,8,2,3,4,7,8,2,10,11>

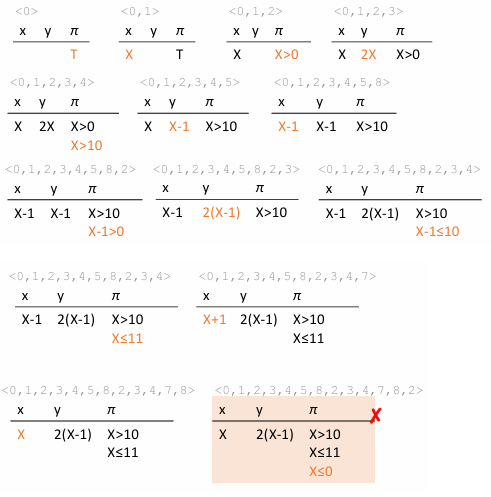

Path Breakdown:
Steps through the loop:
The path repeatedly enters the while loop at line 2, satisfying .
At each iteration:
Line 3 computes .
Line 4 branches based on . If true, (line 5). Otherwise, (line 7).
Line 8 decrements by 1.
Exiting the loop: The loop exits when , proceeding to line 10, where is decremented again before returning its value at line 11.
Feasibility Analysis:
For the path <0,1,2,3,4,5,8,2,3,4,7,8,2,10,11> to be feasible:
must remain positive during each iteration of the loop at line 2.
The alternating branches (lines 5 and 7) and the decrements at line 8 must result in for every loop iteration until exiting.
However, examining the changes to :
Each iteration reduces by at least 1 due to line 8, while line 7 increases by 2. This interplay may not consistently satisfy .
Additionally, in some iterations and not in others introduces conflicting constraints on , making it impossible to satisfy the path condition for all iterations.
Upon exiting the loop, must reach line 10, where it is decremented again, but this sequence of actions leads to an inconsistent state for the given path.
Conclusion: The path <0,1,2,3,4,5,8,2,3,4,7,8,2,10,11> is unfeasible because no assignment to and satisfies the constraints required to traverse the exact sequence of operations specified in the path.
Weaknesses and Limitations
Symbolic execution offers a robust framework for analyzing programs and verifying their correctness by exploring all possible execution paths. However, several practical challenges and intrinsic limitations restrict its universal applicability.
Complexity of Path Conditions
Path conditions can become too intricate for modern constraint solvers to handle effectively.
While solvers excel at resolving linear constraints, they struggle with:
Non-linear arithmetic:
Bit-wise operations: ,
String manipulations: operations involving string concatenation or pattern matching.
Exploding Number of Paths
Programs with unbounded loops generate an infinite set of paths, making complete exploration impossible.
Even when loops are bounded, the sheer number of paths can overwhelm the solver due to exponential growth in possibilities.
A common heuristic is to approximate loop execution by considering a limited number of iterations, typically 0, 1, and 2.
External or Unknown Code
Symbolic execution cannot analyze external libraries or black-box functions where the source code is unavailable.
Without knowing the internal behavior of such functions, the solver cannot explore paths dependent on their outcomes.
Example: Limitations in Practice
Consider the following program involving a black-box functionbb:

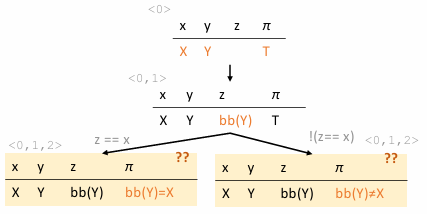

0: void bar(int x, int y) {1: int z := bb(y); // black-box function2: if (z == x) {3: z := y + 10;4: if (x <= z)5: print("error");6: }7: print("end"); // location8: }
Analysis:
The function bb(y) introduces uncertainty because its behavior is unknown.
The symbolic execution framework cannot generate constraints for .
Without a concrete or symbolic model of bb, it is impossible to reason about the condition .
Resulting Limitation:
Paths dependent on bb (e.g., <0,1,2,3,4,5,7>) remain unexplored.
The inability to analyze these paths prevents verifying the correctness of the program fully.
Evolution of Symbolic Execution
Symbolic execution was introduced in 1976 by James C. King, who published the seminal paper “Symbolic Execution and Program Testing” in the journal Communications of the ACM. This work established the foundation for using symbolic methods to test programs. Reference: James C. King, DOI: 10.1145/360248.360252.
Symbolic execution became a practical tool approximately 30 years later, due to technological advancements. Improved constraint solvers, such as Satisfiability Modulo Theories (SMT) solvers like Z3 or CVC4, enabled efficient reasoning over complex constraints. Additionally, concolic testing, which combines the strengths of symbolic and concrete execution, emerged as a hybrid approach that mitigates many classical weaknesses. Concrete execution resolves cases where symbolic solvers fail, such as black-box functions, while symbolic execution ensures broader coverage by exploring alternative paths. Concolic execution is widely used in software testing frameworks to generate inputs that cover diverse execution paths, improving code coverage and uncovering potential bugs.
